Electrical Insulation Thermal Shock Resistance 0.05mm Zirconia Insulators

Brand Name : oem

Certification : ISO9001:2008/SGS/ROHS

Place of Origin : china

MOQ : 1 qty

Price : dollar 2-6

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 per/month

Delivery Time : 5-8 working day

Packaging Details : wooden box

Material : Zirconia Ceramic, Zirconia

Features : Heat resistance / Wear resistance / High purity / Refractory / High Corrosion / Good Insulation...

Application : Industrial Ceramic,Structure Ceramic,thermocouple protection tube,Wear resistant,Knitting Spare Part

Tolerance : ±0.05mm,can be polished,As customer's drawing

Usage : Wear-resisting Material,Industry Usage,Structural parts for machinery,Indutry equipment

Max working temperature : 1050℃ ( Zirconia)

Contact Now

Zirconia Ceramic Insulators Customized Electrical Insulation Thermal Shock Resistance Manufacturing Zirconia Insulators Parts

Standard Zirconia Insulators & Mullite insulators Products available in:
 1, 2, and 4 Hole Solid Zirconia ceramic and Mullite ceramic Insulators Tube.


We a pro ceramic bushing parts manufacturer, us produce multi type ceramic bushing sleeving by our customized requirements.

Do not find similar ceramic products on this page?
For more detail of ceramic products like price,shipping,samples...
Quick Free Quote . Our official E-mail: admin@cerampart.com(Mr admin).thanks

 	 			Performance
 			Item 			  			Unit 			Zirconia
 			Physical Characteristics 			Bulk density 			g/cm3 			6.05
 			Water absorption 			% 			0
 			Mechanical Characteristics
 			Flexural strength 			Mpa 			1000
 			Hardness Vickers 			Gpa 			89
 			Elastic modulus 			Gpa 			200
 			Poisson’s ratio 			- 			0.31
 			Thermal Characteristics 			Linear expansion coefficient 			(20-5000C) 10-6/0C 			10
 			Thermal conductivity 			w/(m.k) 			2.5
 			Specific Heat 			*10-3J/(kg*K) 			0.5
 			Electrical Characteristics 			Dielectric constant (1MHZ) 			- 			N.A.
 			Dielectric loss angle 			*10-4 			N.A.
 			Dielectric strength 			*106V/m 			N.A.
 			Processing technology
 			Process range (mm)
 			Outside Diameter 			1---300
 			Inside Diameter 			0.5---300
 			Length 			0.5---1200
 			Accuracy of working (mm)
 			Perpendicularity 			0.01
 			Concentricity 			0.01
 			Roundness 			0.005
 			Straightness 			0.005
 			Parallelism 			0.01
 			Planeness 			0.005
 			Roughness 			0.05
 			Fit clearance 			0.005

Operating EnvironmentsUltra High Purity Alumina is also suitable for higher temperature applications and generally has a limit of operation up to 1600°C. This, coupled with a high corrosion resistance makes it ideal for insulators, particularly those found in electrostatic precipitators which usually have operating conditions of high temperature, humidity and acid or alkaline conditions.





Properties of Zirconium Oxide (ZrO2)High thermal expansion (α=11 x 10-6/K, similar to some types of steel)
Excellent thermal insulation/low thermal conductivity (2.5 to 3 W/mK)
Very high resistance to crack propagation, high fracture toughness (6.5 to 8 MPam1/2)
Ability to conduct oxygen ions (used for the measurement of oxygen partial pressures in lambda probes)


Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com

CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com

FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.

Product Tags:

Electrical Insulation Zirconia Ceramic Insulators

1 hole Zirconia Insulators

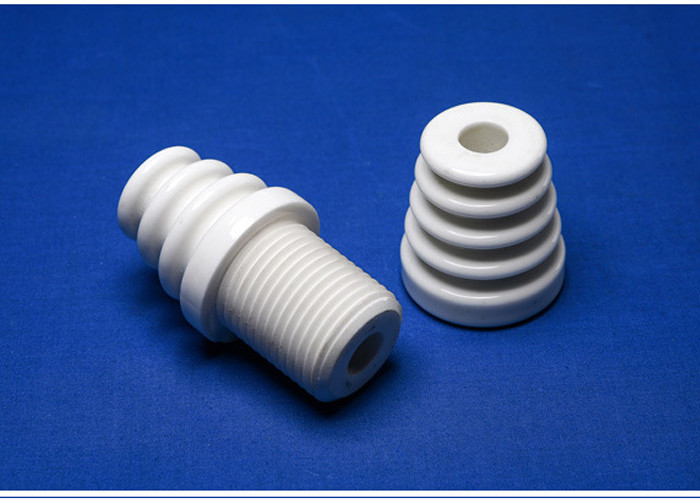

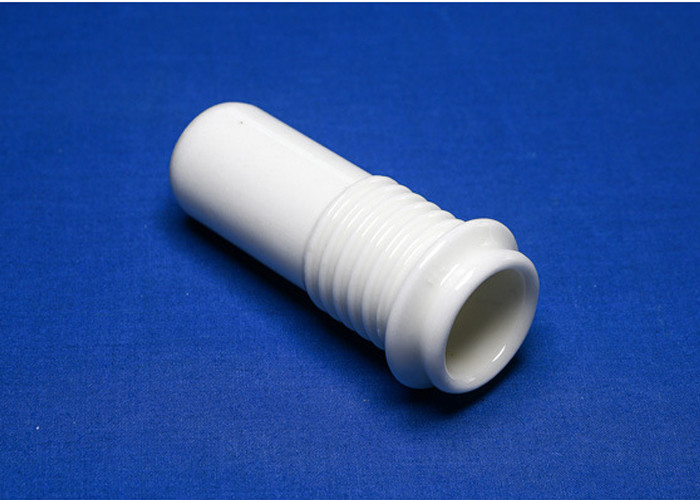

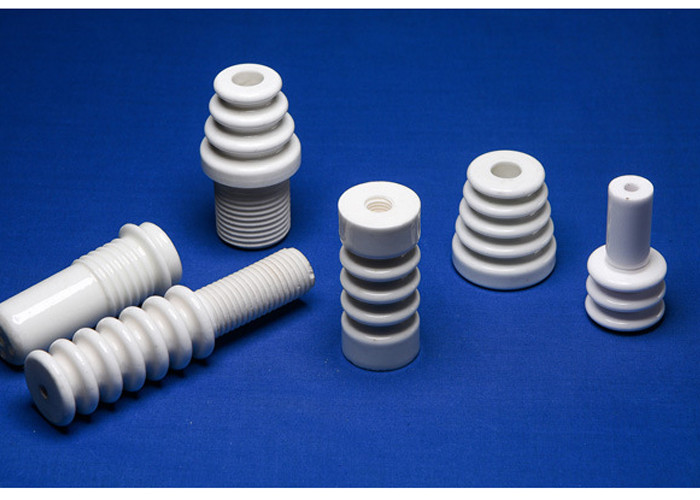

Electrical Insulation Thermal Shock Resistance 0.05mm Zirconia Insulators Images
