Customized Wearable Zirconia Ceramic Split Bushes for M2 M3 M4 Screw Joints
| Ceramic split bushes can be used with UHV manipulators to enable sample plate or heater filaments to be mechanically clamped in position while maintaining electrical isolation. These items are cleaned to UHV standards and supplied in packs of 10. | Features | - Sample kits in various sizes
- Choice of materials
- Shapal M
- Boron Nitride HP grade
- Customer machining available on request

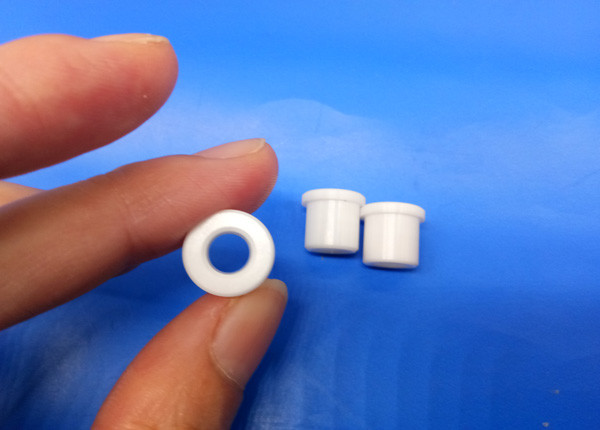

| Ceramic split bushes
Click image to enlarge |  | | |
Advantages of Ceramic Split Bushes:
1. Isostatic pressed.
2. Fire resistance.
3. Superior mechnical strength.
4. High corrosion and wear resistance.
5. High Temperature Resistance.
6. Good Insulation Performance Precision.
7. Zirconia and alumina ceramic material.
They are high corrosion and wear resistance and strong impact resistance and delivers 10 times longer working life than metal plunger. They give a longer life to the sealed packing material.
Material data sheet
| Properties | Unit | | Alumina | Zirconia |
| 96%Al2O3 | 99%Al2O3 | 99.5%Al2O3 | 99.8%Al2O3 | 99.9%Al2O3 | 3Y-TZP |
| Colour | - | White | White | Ivory | Ivory | Translucent | white/black |
| Bulk density | g/cc | 3.78 | 3.88 | 3.93 | 3.93 | 3.98 | 6.03 |
| Water Absorption | % | 0 | 0 | 0 | 0 | 0 | 0 |
| Grain size | μm | 5-10 | 2-5 | 2-5 | 2-5 | 2-4 | 0.4 |
| Bending strength | MPa | 380 | 350 | 360 | 380 | 300 | 1000 |
| KIC | MPa.m1/2 | 3~4 | 4 | 3~4 | 3~4 | 3~4 | 5~8 |
| Vickers Hardness | GPa | 13 | 14 | 14.5 | 14.5 | 15 | 13 |
| Young's Modulus of Elasticity | GPa | 360 | 370 | 370 | 380 | 390 | 200 |
| Thermal Conductivity | W/m° K | 24 | 28 | 32 | 32 | 34 | 2 |
| Coefficient of Linear Expansion | 10-6/°C | 6.7 | 7.2 | 7.2 | 7.2 | 7.2 | 10.5 |
| Dielectric Constant (1MHz) | - | 9.1 | 9.5 | 9.6 | 9.6 | 9.9 | 33 |
| Dielectric Loss Angle (1MHz) | - | 0.0002 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.002 |
| Dielectric Strength | V/m | 15×106 | 15×106 | 15×106 | 15×106 | 15×106 | 11×106 |
| Volume Resistivity | Ohm.cm | >1014 | >1014 | >1014 | >1014 | >1014 | 1013 |
(RT)
|
Advanced equipments and Exquisite Machining Process
| Packaging Details: | 1. Carton with Bubble bag or foam.
2. Wooden carton
3. As per customer's requirements. |
| Delivery Details: | 1. 3-25 days for sample
2. 25-40 days for mass products. |
| Shipment Terms: | 1. Small order: By express, DHL/ UPS/ Fedex/ EMS etc.
2. Large order: By sea or By air |

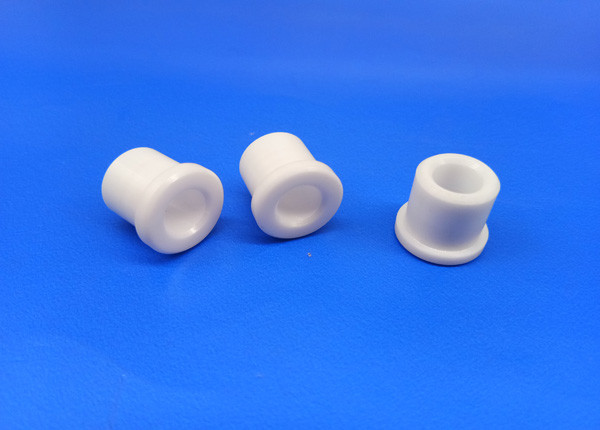

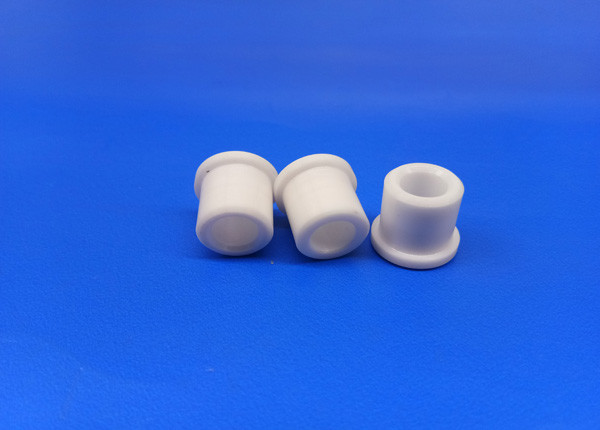

Product Photos Show
Company information
Who Are We?
Mingrui is a professional factory with years OEM experience in manufacturing industrial ceramic parts.
What Do We Do?
We produce (OEM ) strengthened structure zirconia and alumina ceramic rod,tube, shaft, plate, sleeve, valve, plunger, bearing, nozzle and ceramic arm, they are applicable to instruments, medical instruments, clocks and electronic products, mills, energy and power, machine and metals, autocar and military, spaceflight and some other high-end fields.
All of our products with certificates, such as , CE, TUV, and so on.
Factory Show
Certificates Show
Our service
FAQ
Our Factory Welcomes Your Visiting!
Product Tags:
|
|

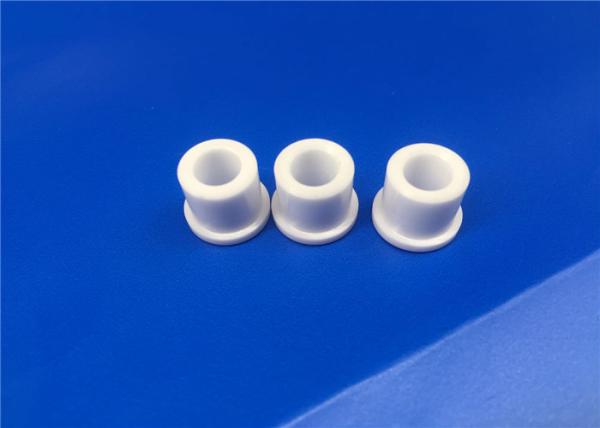

Wearable Zirconia Ceramic Parts / Zirconia Ceramic Split Bushes For Screw Joints Images
|
